Functions for OS. More...

#include "OSConfig.h"
#include "cpu_vars.h"

Include dependency graph for OS.h:

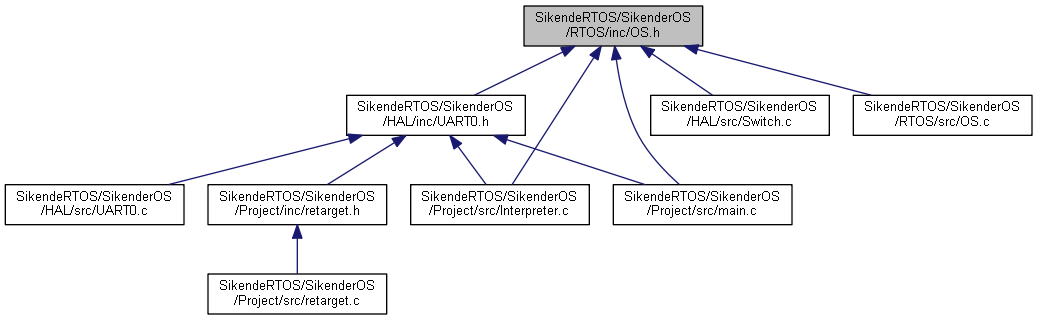

This graph shows which files directly or indirectly include this file:

Data Structures
struct	Sema4

struct	MailBox

Typedefs
typedef struct Sema4	Sema4Type

typedef struct MailBox	MailBoxType

Functions
void	OS_Init (void)
	initialize operating system, disable interrupts until OS_Launch initialize OS controlled I/O: serial, ADC, systick, LaunchPad I/O and timers More...

void	OS_InitSemaphore (Sema4Type *semaPt, INT32 value)
	Initialize semaphore to given value. More...

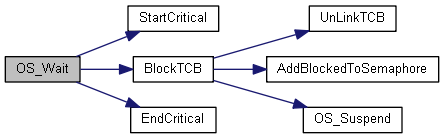

void	OS_Wait (Sema4Type *semaPt)
	semaphore value decrement More...

void	OS_Signal (Sema4Type *semaPt)
	This function(Spinlock) will signal that a mutual exclusion is taking place in a function. More...

void	OS_bWait (Sema4Type *semaPt)
	Wait on semaphore, binary. More...

void	OS_bSignal (Sema4Type *semaPt)
	Signal semaphore to be free, set to 1. More...

void	OS_ASM_Signal (Sema4Type *semaPt)
	Spinlock semaphore signal using ARM exclusion. More...

void	OS_ASM_Wait (Sema4Type *semaPt)
	Spinlock semaphore wait using ARM exclusion. More...

INT8	OS_AddThread (void(*task)(void), INT32U priority)
	This function decides next thread to run, now uses priority scheduler. More...

INT32U	OS_IdThread (void)
	Get current thread ID. More...

INT8	OS_AddPeriodicThread (void(*task)(void), INT32U period, INT32U priority)
	Adds periodic background thread. Cannot spin, sleep, die, rest, etc. cause it's ISR, depends on hardware for number of tasks possible No ID for this thread, must have mid-high priority to run properly. More...

INT8	OS_AddSW1Task (void(*task)(void), INT32U priority)
	This function adds a thread to run and its priority when a button is pressed. More...

INT8	OS_AddSW2Task (void(*task)(void), INT32U priority)
	This function adds a thread to run and its priority when a button is pressed. More...

void	OS_Sleep (INT32U sleepTime)
	This function puts a thread to sleep. More...

void	OS_Kill (void)
	This function kill/deletes current thread from schedule. More...

void	OS_Suspend (void)
	This function suspends current thread by forcing context switch call. More...

void	OS_Fifo_Init (void)

INT8	OS_Fifo_Put (FIFO_t data)

FIFO_t	OS_Fifo_Get (void)

INT32U	OS_Fifo_Size (void)
	Gets current size of FiFo. More...

void	OS_MailBox_Init (void)
	Initialize mailbox for OS. More...

void	OS_MailBox_Send (INT32U data)
	This function will be called from a foreground thread It will spin/block if the MailBox contains data not yet received. More...

INT32U	OS_MailBox_Recv (void)
	This function will be called from a foreground thread It will spin/block if the MailBox is empty. More...

INT32U	OS_Time (void)

INT32U	OS_TimeDifference (INT32U start, INT32U stop)

void	OS_ClearMsTime (void)

INT32U	OS_ReadMsTime (void)

void	OS_Launch (INT32U theTimeSlice)
	This function starts the scheduler and enables interrupts. More...

Detailed Description

Functions for OS.

Definition in file OS.h.

Typedef Documentation

◆ MailBoxType

typedef struct MailBox MailBoxType

Definition at line 32 of file OS.h.

◆ Sema4Type

typedef struct Sema4 Sema4Type

Definition at line 20 of file OS.h.

Function Documentation

◆ OS_AddPeriodicThread()

INT8 OS_AddPeriodicThread	(	void(*)(void)	task,
		INT32U	period,
		INT32U	priority
	)

Adds periodic background thread. Cannot spin, sleep, die, rest, etc. cause it's ISR, depends on hardware for number of tasks possible No ID for this thread, must have mid-high priority to run properly.

OS_AddPeriodicThread Add new thread to OS that runs periodically, uses Timer4

Parameters

task	task to run for thread
stackSize	size of stack
priority	priority of thread

Returns: success: 1, fail: 0

OS_AddPeriodicThread

Parameters

task	task to run in background
period
priority	5-0 only, else you'll break OS :(

Returns: successful - 1, Fail - 0

Definition at line 593 of file OS.c.

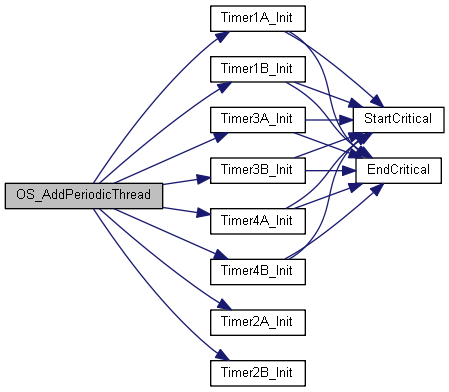

Here is the call graph for this function:

◆ OS_AddSW1Task()

INT8 OS_AddSW1Task	(	void(*)(void)	task,
		INT32U	priority
	)

This function adds a thread to run and its priority when a button is pressed.

OS_AddSW1Task Add thread to button PF4

Parameters

task	task to run for thread
priority	priority of thread

Returns: success: 1, fail: 0

OS_AddSW1Task

Parameters

task	function/thread to run when button pressed
priority

Returns: success or fail

Definition at line 626 of file OS.c.

Here is the call graph for this function:

◆ OS_AddSW2Task()

INT8 OS_AddSW2Task	(	void(*)(void)	task,
		INT32U	priority
	)

This function adds a thread to run and its priority when a button is pressed.

OS_AddSW1Task Add thread to button PF0

Parameters

task	task to run for thread
priority	priority of thread

Returns: success: 1, fail: 0

OS_AddSW2Task

Parameters

task	function/thread to run when button pressed
priority

Returns: success or fail

Definition at line 638 of file OS.c.

Here is the call graph for this function:

◆ OS_AddThread()

INT8 OS_AddThread	(	void(*)(void)	task,
		INT32U	priority
	)

This function decides next thread to run, now uses priority scheduler.

OS_AddThread Add new thread to OS, Linked List style

Parameters

task	task to run for thread
stackSize	size of stack
priority	priority of thread

Returns: success: 1, fail: 0

OS_AddThread

Parameters

task
stackSize
priority

Returns: 1-success, 0-fail

Definition at line 386 of file OS.c.

Here is the caller graph for this function:

◆ OS_ASM_Signal()

void OS_ASM_Signal ( Sema4Type * semaPt )

Spinlock semaphore signal using ARM exclusion.

OS_ASM_Signal

Here is the caller graph for this function:

◆ OS_ASM_Wait()

void OS_ASM_Wait ( Sema4Type * semaPt )

Spinlock semaphore wait using ARM exclusion.

OS_ASM_Signal

Here is the caller graph for this function:

◆ OS_bSignal()

void OS_bSignal ( Sema4Type * semaPt )

Signal semaphore to be free, set to 1.

OS_bSignal

Signal semaphore to be free, set to 1.

OS_bSignal

Parameters

semaPt semaphore passed in

Definition at line 514 of file OS.c.

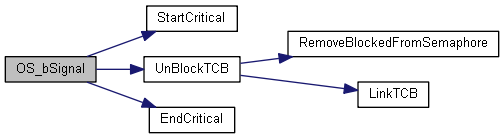

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OS_bWait()

void OS_bWait ( Sema4Type * semaPt )

Wait on semaphore, binary.

OS_bWait

Parameters

semaPt pointer to semaphore

Wait on semaphore, binary.

OS_bWait

Parameters

semaPt semaphore passed in

Definition at line 499 of file OS.c.

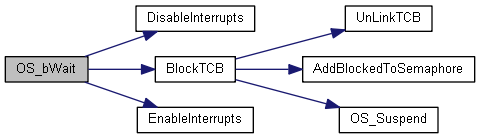

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OS_ClearMsTime()

void OS_ClearMsTime ( void )

OS_ClearMsTime clear ms time counter

OS_ClearMsTime The following function clears the period time, resets counter

Returns: 1 if success

OS_ClearMsTime Clear ms time

Definition at line 760 of file OS.c.

Here is the caller graph for this function:

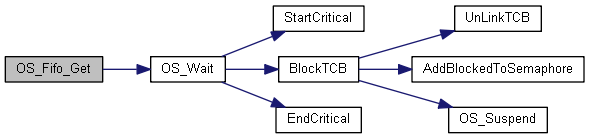

◆ OS_Fifo_Get()

FIFO_t OS_Fifo_Get ( void )

OS_Fifo_Get Get data from thread

Returns: data

OS_Fifo_Get Retrieves data from OS Fifo

Returns: 1 for success, 0 for fail

Definition at line 676 of file OS.c.

Here is the call graph for this function:

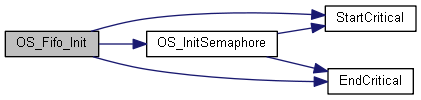

◆ OS_Fifo_Init()

void OS_Fifo_Init ( void )

OS_Fifo_Init Initialize OS Fifo, size must be power of 2, inits semaphores

OS_Fifo_Init Initializes Fifo to be empty, ignored for lab 2, divisible by 2

Definition at line 646 of file OS.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OS_Fifo_Put()

INT8 OS_Fifo_Put ( FIFO_t data )

OS_Fifo_Put Put data to Fifo

Parameters

data	data to put in Fifo

Returns: success: 1, fail: 0

OS_Fifo_Put Adds data to FiFo

Parameters

data

Returns: success - 1, Fail - 0

Definition at line 659 of file OS.c.

◆ OS_Fifo_Size()

INT32U OS_Fifo_Size ( void )

Gets current size of FiFo.

OS_Fifo_Size Get number of items in FiFo

Returns: size of Fifo

OS_Fifo_Size

Returns: size of current FIFO buffer

Definition at line 691 of file OS.c.

◆ OS_IdThread()

INT32U OS_IdThread ( void )

Get current thread ID.

OS_Id return ID of current thread

Returns: ID of thread

OS_IdThread

Returns: id of thread

Definition at line 448 of file OS.c.

◆ OS_Init()

void OS_Init ( void )

initialize operating system, disable interrupts until OS_Launch initialize OS controlled I/O: serial, ADC, systick, LaunchPad I/O and timers

OS_Init Initializes operating system, disables interrupts until OS_Launch Initializes all I/O and interthread communication

OS_Init

Definition at line 188 of file OS.c.

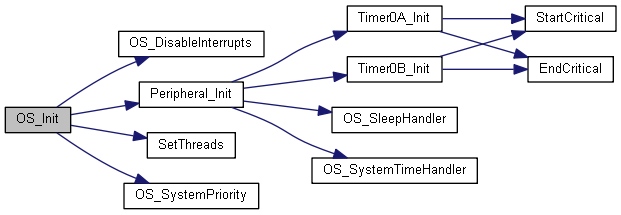

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OS_InitSemaphore()

void OS_InitSemaphore	(	Sema4Type *	semaPt,
		INT32	value
	)

Initialize semaphore to given value.

OS_InitSemaphore Initializes semaphore to default value sent

Parameters

semaPt	pointer to semaphore
value	value of semaphore

OS_InitSemaphore

Parameters

semaPt semaphore ptr

Definition at line 456 of file OS.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OS_Kill()

void OS_Kill ( void )

This function kill/deletes current thread from schedule.

OS_Kill kills current thread

OS_Kill

Definition at line 542 of file OS.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OS_Launch()

void OS_Launch ( INT32U theTimeSlice )

This function starts the scheduler and enables interrupts.

OS_Launch Start OS, setup SysTick

Parameters

theTimeSlice Time between context switches

OS_Launch

Parameters

theTimeSlice period of round robin scheduler

Definition at line 285 of file OS.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OS_MailBox_Init()

void OS_MailBox_Init ( void )

Initialize mailbox for OS.

OS_MailBox_Init

Initialize mailbox for OS.

OS_MailBox_Init

Definition at line 701 of file OS.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OS_MailBox_Recv()

INT32U OS_MailBox_Recv ( void )

This function will be called from a foreground thread It will spin/block if the MailBox is empty.

OS_MailBox_Recv Get data from Mailbox

Returns: data

OS_MailBox_Recv Remove mail from the mailbox

Returns: data from Mailbox

Definition at line 729 of file OS.c.

Here is the call graph for this function:

◆ OS_MailBox_Send()

void OS_MailBox_Send ( INT32U data )

This function will be called from a foreground thread It will spin/block if the MailBox contains data not yet received.

OS_MailBox_Send Puts data in mailbox

Parameters

data

OS_MailBox_Send Enter mail into the Mailbox

Parameters

data	data to put into mailbox

Definition at line 715 of file OS.c.

Here is the call graph for this function:

◆ OS_ReadMsTime()

INT32U OS_ReadMsTime ( void )

OS_ReadMsTime return time (ms)

Returns: time in ms

OS_MsTime

Returns: time in ms

Definition at line 767 of file OS.c.

Here is the caller graph for this function:

◆ OS_Signal()

void OS_Signal ( Sema4Type * semaPt )

This function(Spinlock) will signal that a mutual exclusion is taking place in a function.

OS_Signal Clear Semaphore, Increment

OS_Signal

Parameters

semaPt

Definition at line 483 of file OS.c.

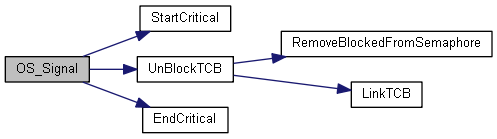

Here is the call graph for this function:

◆ OS_Sleep()

void OS_Sleep ( INT32U sleepTime )

This function puts a thread to sleep.

OS_Sleep Put current thread to sleep then yield

Parameters

sleepTime amount of time to sleep (ms)

OS_Sleep

Parameters

sleepTime time to put thread to sleep

Definition at line 528 of file OS.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OS_Suspend()

void OS_Suspend ( void )

This function suspends current thread by forcing context switch call.

OS_Suspend Suspends current thread

OS_Suspend

Definition at line 343 of file OS.c.

Here is the caller graph for this function:

◆ OS_Time()

INT32U OS_Time ( void )

OS_Time Returns time in 12.5ns

OS_Time

Returns: OS time in 1/BUS_CLK increments

Definition at line 740 of file OS.c.

◆ OS_TimeDifference()

INT32U OS_TimeDifference	(	INT32U	start,
		INT32U	stop
	)

OS_TimeDifference Return difference between time

Parameters

start	start time
stop	stop time

Returns: time difference

OS_TimeDifference

Parameters

start
stop

Returns: time difference

Definition at line 749 of file OS.c.

◆ OS_Wait()

void OS_Wait ( Sema4Type * semaPt )

semaphore value decrement

OS_Wait Wait on semaphore, if busy yield

Parameters

semaPt pointer to semaphore

OS_Wait

Parameters

semaPt pointer to semaphore

Returns: none

Definition at line 468 of file OS.c.

Here is the call graph for this function:

Here is the caller graph for this function:

Data Structures

Typedefs

Functions

Detailed Description

Typedef Documentation

◆ MailBoxType

◆ Sema4Type

Function Documentation

◆ OS_AddPeriodicThread()

◆ OS_AddSW1Task()

◆ OS_AddSW2Task()

◆ OS_AddThread()

◆ OS_ASM_Signal()

◆ OS_ASM_Wait()

◆ OS_bSignal()

◆ OS_bWait()

◆ OS_ClearMsTime()

◆ OS_Fifo_Get()

◆ OS_Fifo_Init()

◆ OS_Fifo_Put()

◆ OS_Fifo_Size()

◆ OS_IdThread()

◆ OS_Init()

◆ OS_InitSemaphore()

◆ OS_Kill()

◆ OS_Launch()

◆ OS_MailBox_Init()

◆ OS_MailBox_Recv()

◆ OS_MailBox_Send()

◆ OS_ReadMsTime()

◆ OS_Signal()

◆ OS_Sleep()

◆ OS_Suspend()

◆ OS_Time()

◆ OS_TimeDifference()

◆ OS_Wait()
